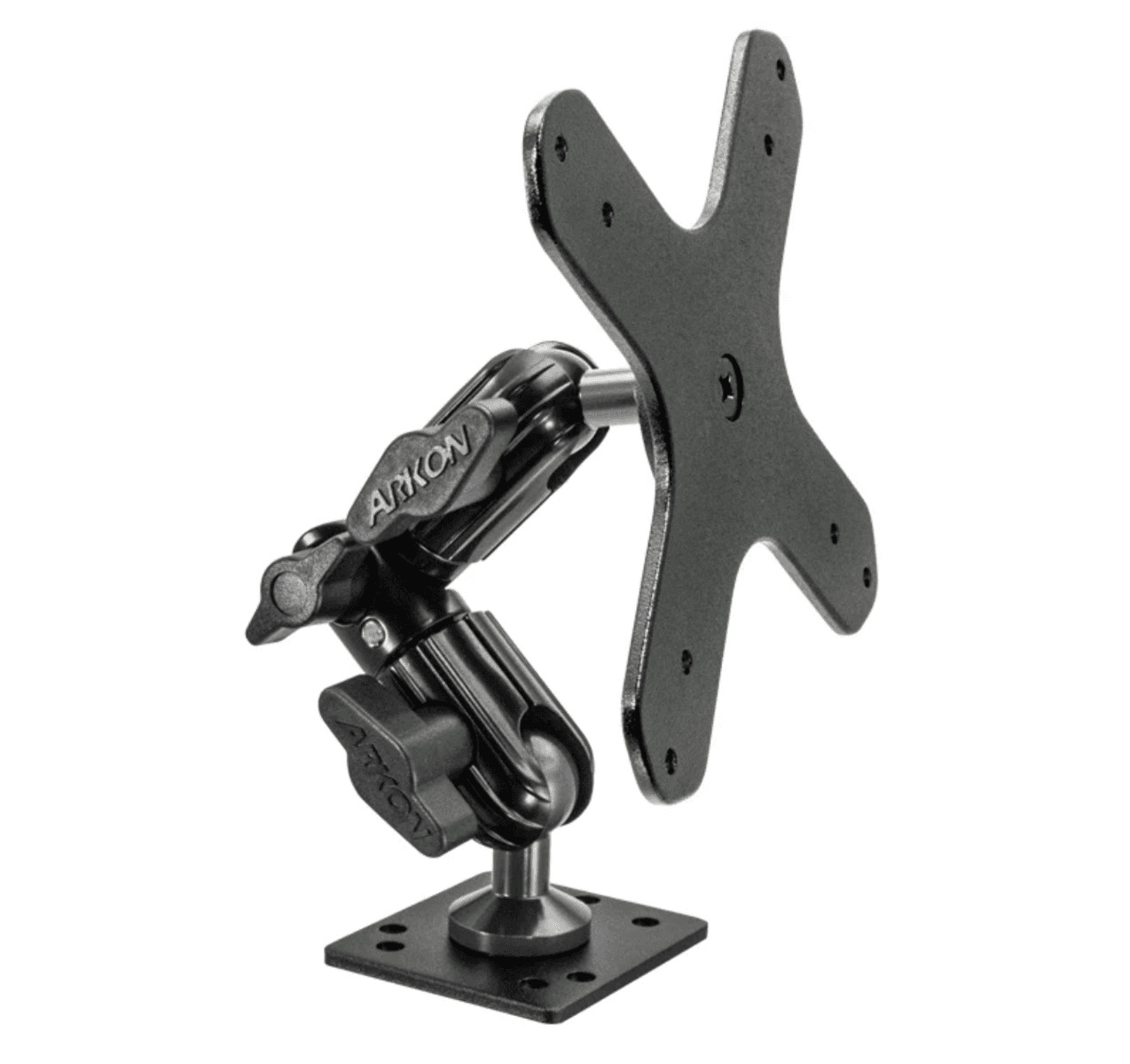

Arkon Heavy-Duty Multi-Angle Drill-Base Mounting Pedestal for VESA 75/VESA 100 Compatible Devices
The HD10VESA20 mounting pedestal can be used as a replacement, upgrade, or as an addition to an existing pedestal with a 4-Hole AMPS pattern. It is compatible with devices having a VESA 75 or VESA 100 mounting pattern. This mount includes Arkon's 6" Heavy-Duty Aluminum 4-Hole Drill Base Mounting Pedestal with Multi-Angle Arm and VESA 75/VESA 100 Head (devices and holders sold separately).
Distributor
1988
Pricing Available
Support
This sturdy 6"mount features three adjustment knobs at 2.5" intervals on the mount arm for easy positioning. Two additional 180° adjustment points at the top and bottom of the mount provide additional flexibility in positioning the device. Formerly an industry standard, the 4-Hole AMPS pattern consists of four holes located in a rectangular pattern spaced at 30.17mm by 38.05mm (measured as the center-to-center distance between holes). The 4-hole drill base mount is made of strong aluminum, and is ideal for environments where a more permanent solution is desirable, such as in a workshop or in retail. Screws are included. This mount can also be screwed directly into the floor or console of a car or truck. (Warning: Drilling into the vehicle's floor may damage the vehicle. Use caution and consult a mobile install professional to avoid drilling into any sensitive vehicle components.) Adjust the multi-angle arm and rotate the swivel ball adapter head for 360° rotation for exact positioning of the device.
