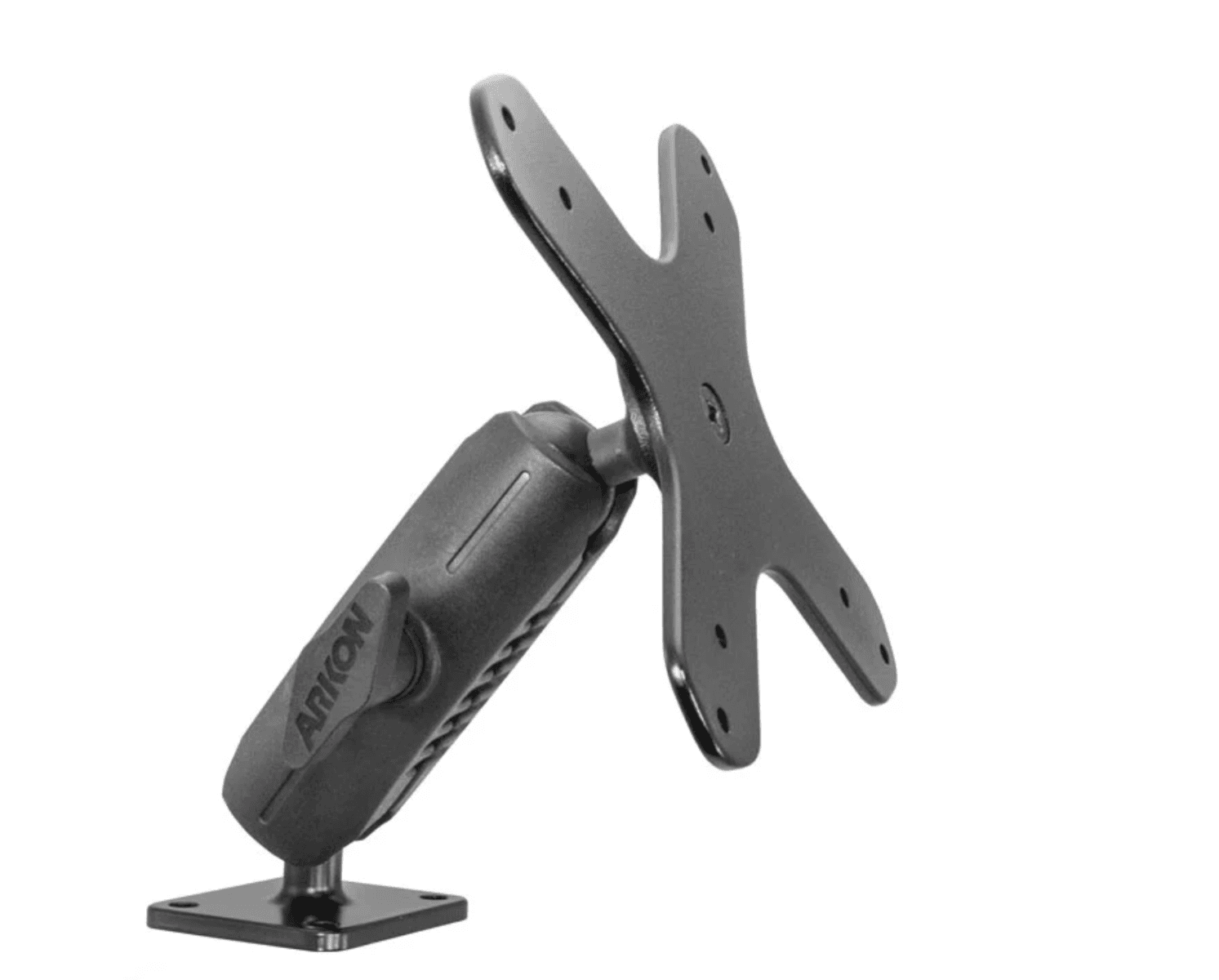

Arkon Robust VESA 75/VESA 100 Drill-Base AMPS Mount
The Robust VESA 75/VESA 100 Drill-Base AMPS Mount pedestal, a part of Arkon's Robust Mount Series, offers a sturdy mounting solution for flat-screen TVs, PC monitors, tablet holders, and other devices with the VESA 75 and VESA 100 mounting patterns. The ideal replacement or upgrade for existing pedestals. It securely mounts to walls or other solid flat surfaces such as countertops, desks, worktops, and tables using screws and the 4-Hole AMPS mounting pattern, providing mounting versatility and durable reliability.
Distributor
1988
Pricing Available
Support
This tough, low-vibration pedestal measures 4.5" high from the bottom of the mount base to the top of the mount pedestal. It is made of a combination of reinforced composite plastic and glass fiber. The pedestal's arm swivels on both the top and the bottom, providing 360° rotation and the ultimate flexibility in positioning the VESA-compatible device at any angle.
Features:
Rugged adjustable mount for securely attaching devices to walls or other solid flat surfaces such as countertops, desks, and worktops VESA 75 and VESA 100 mounting patterns for mounting VESA-standard devices such as flat-screen TVs, PC monitors, tablet holders, and more Robust mount shaft locks with a security knob for securing the Robust Mount in place 4-hole AMPS mounting pattern delivers a solid attachment to any flat surface
VESA-Compatible Head
To secure your monitor, tablet, TV, or other VESA-compatible device, the Robust VESA 75/VESA 100 Drill-Base AMPS Mount arrives with the pre-drilled VESA 75 and VESA 100 hole mounts. These mounts securely attach your device to the mount, keeping it completely safe.
Robust Mount Shaft
Between the VESA Mount and 4-hole AMPS mount is a robust adjustable mount shaft with a locking security knob. This mount shaft can be adjusted to get the right angle of your device before being locked in place.
Tough 4-Hole AMPS Mount
The Robust VESA 75/VESA 100 Drill-Base AMPS Mount arrives with a 4-hole AMPS mount for fixing onto flat surfaces. The AMPS pattern consists of four holes located in a rectangular pattern spaced at 30.17mm x 38.05mm (measured as the center-to-center distance between holes), making it ideal for wall, floor, and desk mounting—whether that's for an EPOS system on a store countertop, a monitor in an office, or a TV on a wall.
Specifications:
Design: Mounting pedestal for VESA-compatible devices
Model: RMVESAMPS
Materials: Reinforced composite, glass fiber, and aluminum
Mount Pattern: 25mm Ball to VESA 75/VESA 100
Surface Mount Pattern: Metal 4-hole AMPS to 25mm adapter
