SPAMPSCBLArkon Round Mounting Spacer AMPS Plate for Cord and Cable Management
This round spacer plate tidies away device cables while lifting your mount to a level, flush mounting surface — ideal when bolting a heavy-duty mount straight onto a wall, console or other awkward spot.
Distributor
1988
Pricing Available
Support

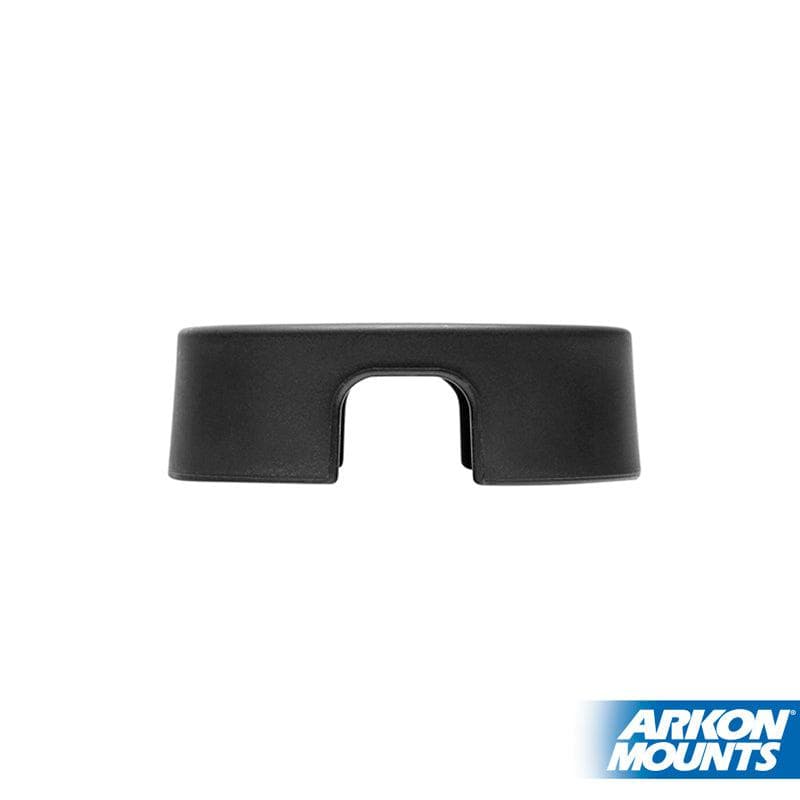

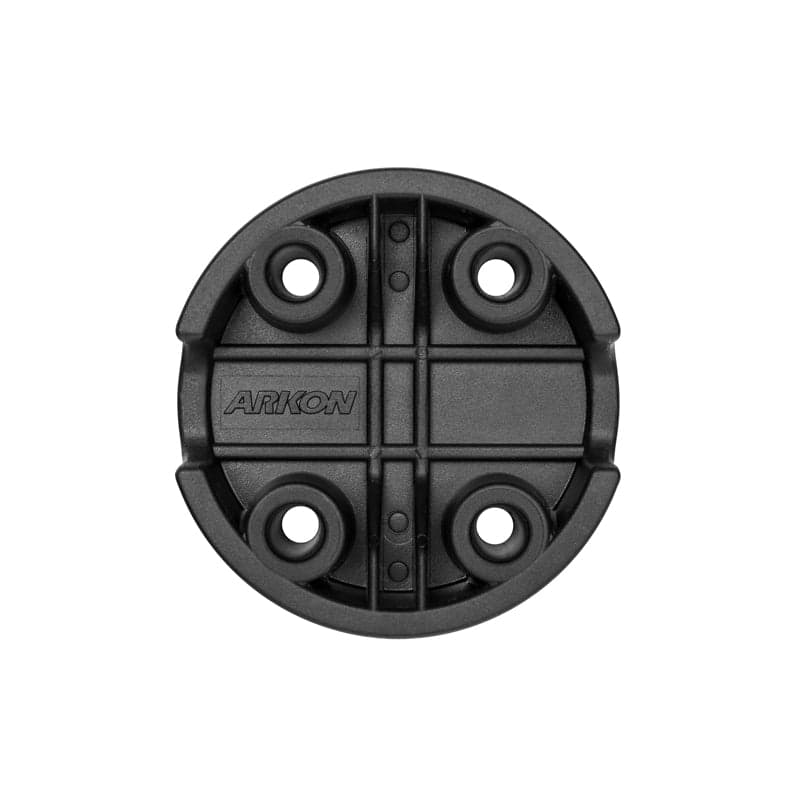

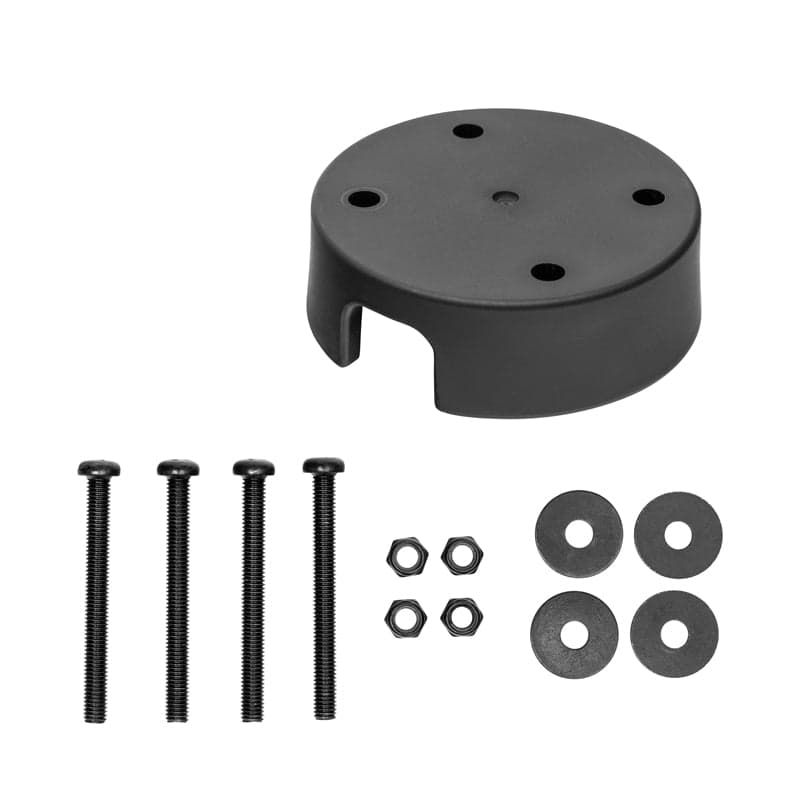

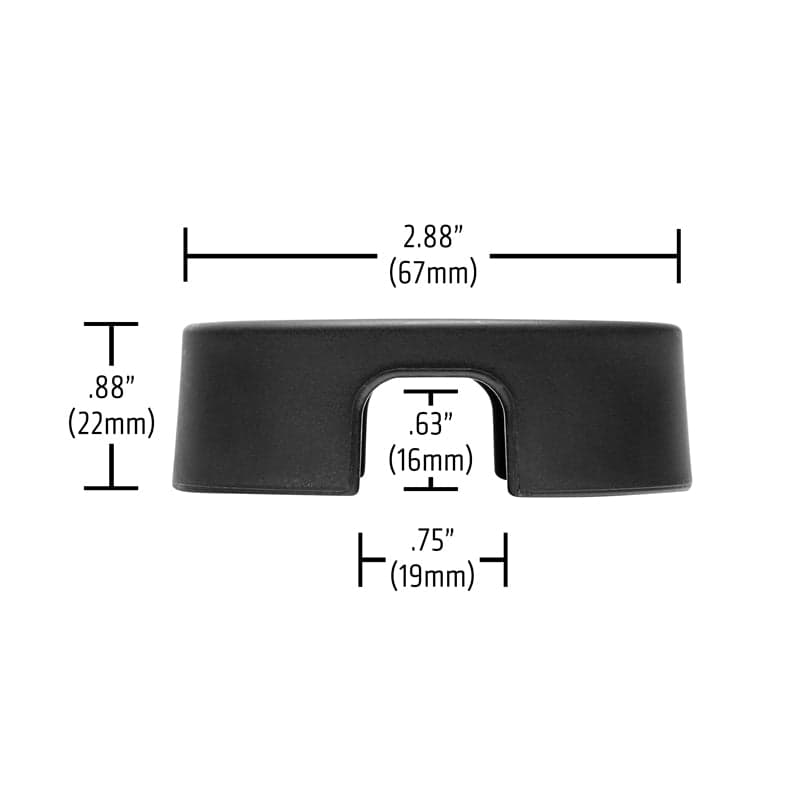

The SPAMPSCBL spacer plate does two jobs at once: it keeps the cords for your electronics neatly routed and it raises your mount to a level, flush surface when you're fixing a heavy-duty mount directly to a wall, console or another hard-to-reach spot. Moulded from high-strength composite, the raised round plate stands 7/8 inches (22mm) tall and measures 2 5/8 inches (67mm) across. Underneath, a cavity slot for feeding cables or cords through is 5/8 inches (16mm) tall by 3/4 inches (19mm) wide. Pre-drilled holes on the face of the plate follow the 4-Hole AMPS pattern — four holes arranged in a rectangle spaced 30.17mm by 38.05mm apart, measured centre-to-centre between holes. Machined screws, nuts and washers come in the box. (Please note the supplied hardware won't suit every application.) From here you can bolt on any 4-Hole AMPS compatible mount base, or fasten the plate straight to a 4-Hole AMPS compatible device such as a GPS unit or satellite radio.
